Glossy / Matte Round Carbon Fiber Tube 3mm Thickness 1000mm Length

Product Description

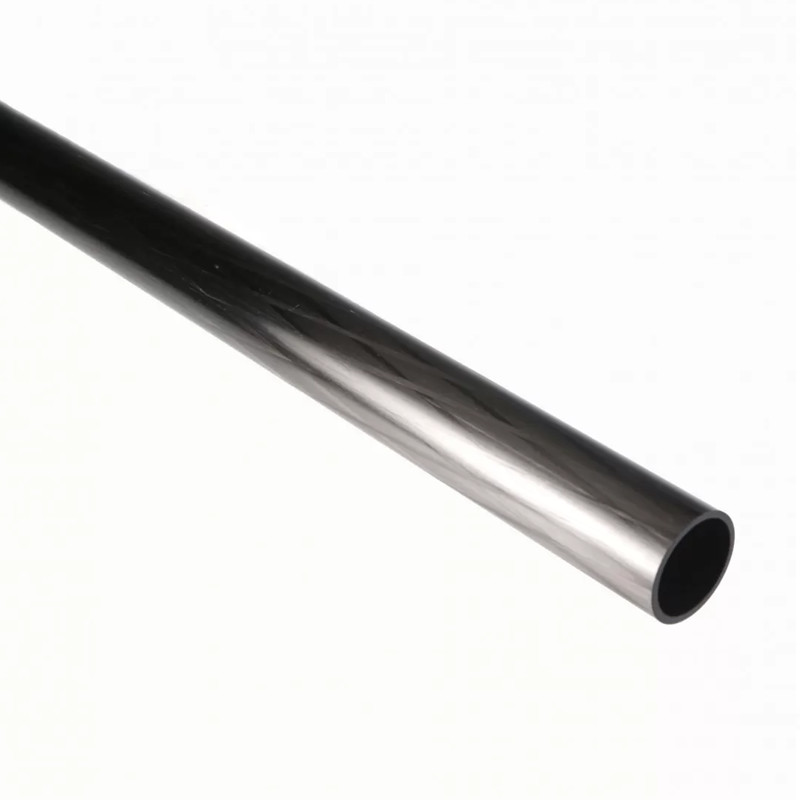

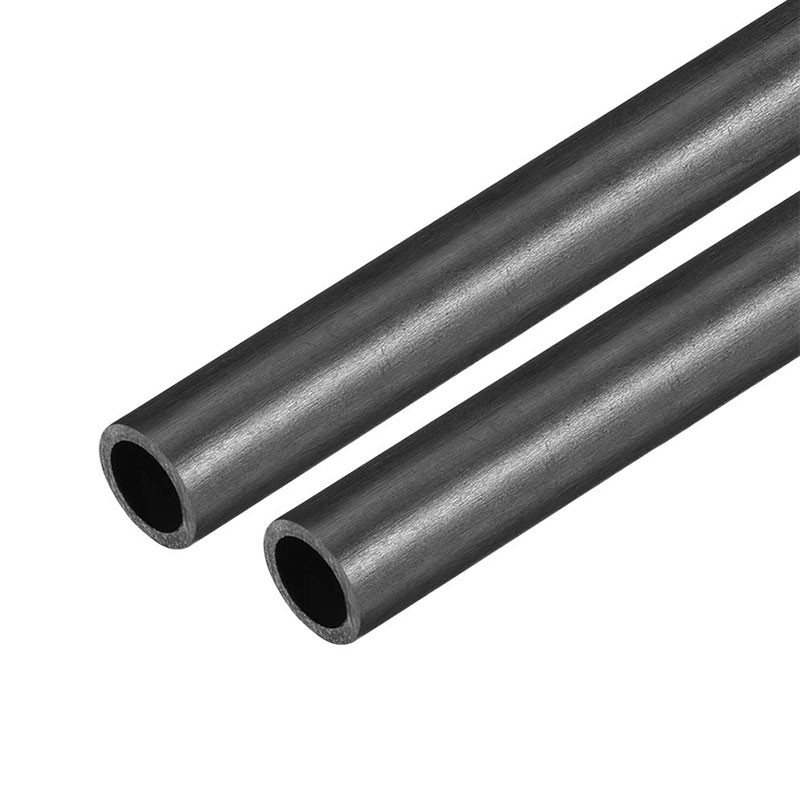

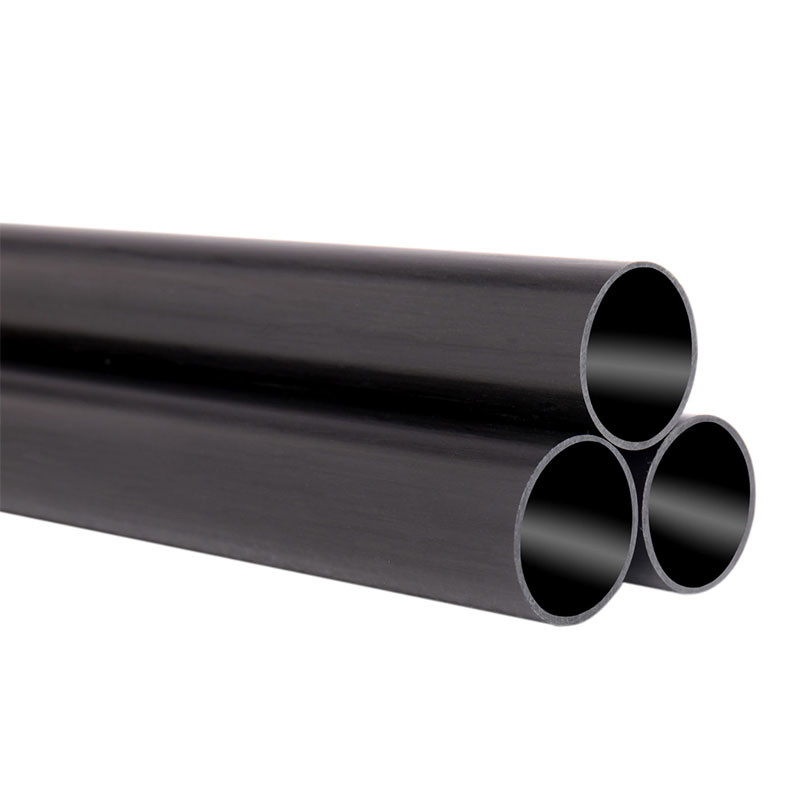

Round Carbon Fibre Tube, ext. ∅ 20 mm, int. ∅ 14 mm, 3 mm thickness (1000 mm length)

Round carbon fibre tubes are manufactured by using the pultrusion technique in which the high-performance carbon fibres are all orientated parallel to the longitudinal axis (unidirectional) and internally reinforced with more unidirectional carbon fibres laminated by using pullwingding technology to achieve greater resistance to bending and torsion.

Diameter: 20 mm; int. 14 mm

Length: 1000 mm (1m)

Thickness: 3 mm

This type of profile has high specific mechanical resistance (related to its weight), lightness, rigidity, great resistance to fatigue and vibrations, resistance to oxidation and corrosion, low coefficient of thermal expansion, and durability.

Pultrusion is a technique of continuous production of linear profiles with a constant section. This process has many similarities to extrusion, the main difference is in the feeding system: in extrusion, the material is pushed through the matrix (mold), and in pultrusion it is extracted from the matrix. This procedure does not allow variations in shape, sections or curves. Products that can be obtained by this process can have sections or thicknesses of up to approximately 15mm, with epoxy resins and up to 70mm with polyester resins.

Products made with this technology have excellent tensile strength characteristics due to the linear orientation of the fibers in the direction of axis of the profile; if it is also necessary to have a good transversal resistance, a woven fabric is used as a backing in specific quantities and weights.

Main Features

• Elastic module (E): 150 Gpa
• Elastic module x section (E A): 24.033 kN
• Tensile strength > 2.463 Mpa
• Tensile strength in section: 395 kN

Carbon Fibre Properties

• Number of filaments: 24K (24.000 filaments per strand)
• Elastic module (E): 234 GPa
• Tensile strength: 4.830 MPa
• Density: 1,80 g/cm3


FAQ
1) How can I place an order?
A: You can contact us by email about your order details.

2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T and Paypal

3) What's the order procedure?
A: First we discuss order details, production details by email or WhatsApp. Then we issue you a PI for your confirmation.
You will be requested to do prepaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.

4) How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.

Our Service:

1. It ensures that a year of quality assurance and 24 hours online customer service.
2. Protection of your sales area, ideas of design, and all your private information.
3. Request for samples is accepted.
4. Drilling and slotting are accepted.
5. We guarantee the products to be manufactured with the finest materials and mature technics.
All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.
