High Strength Durable Light 3K Carbon Fiber Board Composite Sheet 500mmx500mm
Contact Person : Terry.Chang, Grace Gu
Phone Number : +86-13681832139
WhatsApp : +8619537611058
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | Normal Corrugated Carton Packing for International Shipment | Delivery Time : | 7 working days after receiving Order Payment |
Payment Terms : | T/T, PayPal,Western Union , L/C | Supply Ability : | 1500pcs month |
Place of Origin: | China | Brand Name: | Tanku |
---|---|---|---|
Certification: | SGS, ROHS | Model Number: | TM_340mm_410mm_2.5mm |
Detail Information |
|||
Product Name: | Carbon Fiber Board | Material: | Carbon Fiber Pre-Preg With Epoxy Resin |
---|---|---|---|
Surface: | 3K, Twill Or Plain, Matt Or Gloss Surface | Thickness: | 0.1-60.0mm |
Weight: | 1.5g/cm3 | Weave: | 3K Plain / 3K Twill / Unidirection |
Use: | Blanket, Industry, UAV, Accessories, Outdoor, Car | Feature: | Abrasion-Resistant, Waterproof, Heat-Insulation |
High Light: | 3K Glossy Surface Carbon Fiber Board,Plain Weave 3K Carbon Fiber Sheets,Waterproof Carbon Fiber Sheets |
Product Description

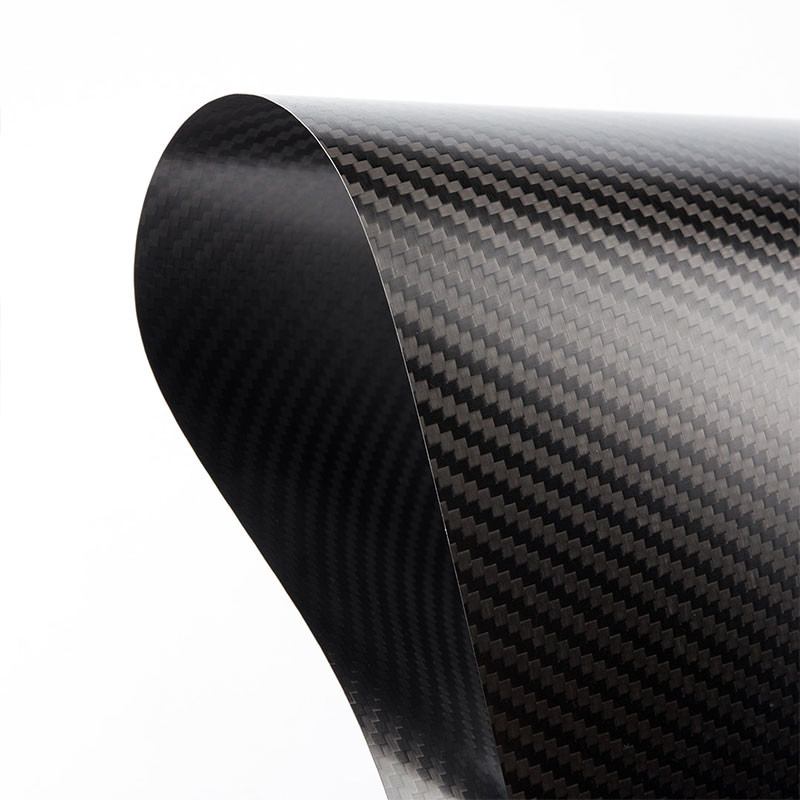

Plain Weave Carbon Fiber Sheets 100% 3K Glossy Surface Carbon Fiber Board

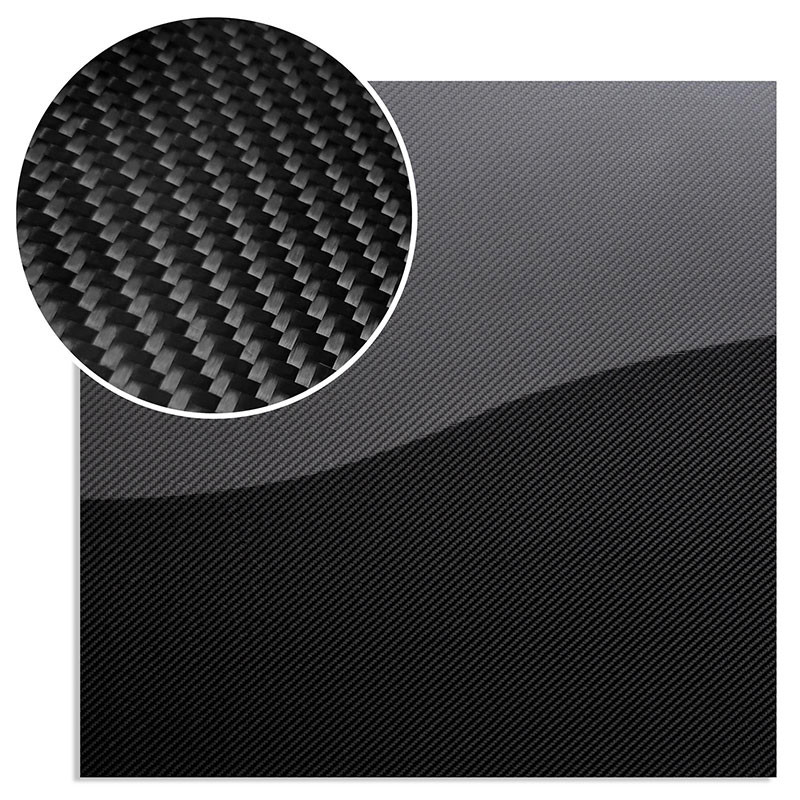

This panel has a 2×2 twill weave pattern, one of the most common weave patterns in many markets. The finished side of the panel has a classic 2×2 twill, 3K woven carbon fiber appearance and is nearly pinhole-free with a high-gloss finish. The panel’s backside showcases a matte textured ‘peel ply’ finish suitable for secondary bonding, if necessary.
Our high-strength vacuum-infused composite panels are manufactured using 100% carbon fiber reinforced with a near-clear epoxy resin matrix. All composite stacks are laid by hand to ensure maximum homogenization of fiber alignment. Stacks are then vacuum-infused and cured under pressure greater than 28 inches of mercury. The tool is then elevated to an optimal temperature to produce a near-perfect composite panel with high-grade mechanical properties and a class-A surface finish.
About Carbon Fiber Board

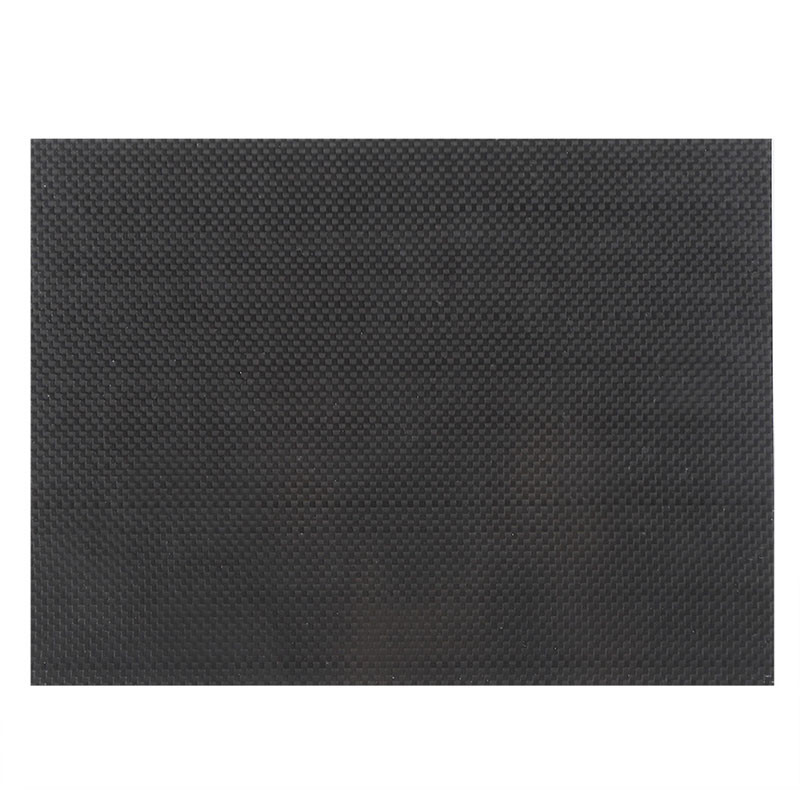

【Plain Weave Glossy Surface】Plain weave finish, clear texture. Carbon fiber plate has high strength and lightweight, good corrosion resistance, it has a long service life. There are three sizes of 240*240mm, 300*300mm, and 400*400mm with multi thicknesses of 0.5mm, 1mm, 1.5mm, 2mm, 2.5mm, 3mm, and 4mm for you to choose.
【100% Carbon Fiber Plate】 Made of pure carbon fiber material, without any fillers/composite layers. High-quality carbon fiber materials texture which is durable, light, and very strong.
【3K Carbon Fiber Board】This 3k carbon fiber with 3000 filaments is strong, yet lightweight as it is filled in each tow or bundle.
【Wide Application】Perfect for any application including RC airplanes, drones, helicopters, multicopters, car exteriors and interior surfaces, car door handles, cellphones, laptops, etc.
【Easy to Cut】You can easily cut out the shape that you require without much effort as the material is easy to work with yet very strong. Cut with precision and obtain fine straight edges without burs with our carbon fiber flat sheets.
Single-Sided Carbon Fiber Plate Specification:
Item Name |
Thickness |
Length & Width |
Weave |
Finish |
SKU Code |
N.W. |
Regular MOQ |
1st Order MOQ |
Ship From |
05005060, Full CF Plate, Plain Weave,6K, Matte, TT |
5 |
500mm*600mm |
Twill |
Glossy |
TG05005060PLTFCF3KTT |
2.48 |
5 |
1 |
China factory |
04005060, Full CF Plate, Plain Weave,5K, Matte, TT |
4 |
500mm*600mm |
Twill |
Glossy |
TG04005060PLTFCF3KTT |
1.94 |
5 |
1 |
China factory |
03005060, Full CF Plate, Plain Weave,4K, Matte, TT |
3 |
500mm*600mm |
Twill |
Glossy |
TG03005060PLTFCF3KTT |
1.46 |
5 |
1 |
China factory |
02505060, Full CF Plate, Plain Weave,3K, Matte, TT |
2.5 |
500mm*600mm |
Twill |
Glossy |
TG02505060PLTFCF3KTT |
0 |
5 |
1 |
China factory |
02005060, Full CF Plate, Plain Weave,3K, Matte, TT |
2 |
500mm*600mm |
Twill |
Glossy |
TG02005060PLTFCF3KTT |
0.96 |
5 |
1 |
China factory |
01505060, Full CF Plate, Plain Weave,3K, Matte, TT |
1.5 |
500mm*600mm |
Twill |
Glossy |
TG01505060PLTFCF3KTT |
0.73 |
5 |
1 |
China factory |
01005060, Full CF Plate, Plain Weave,3K, Matte, TT |
1 |
500mm*600mm |
Twill |
Glossy |
TG01005060PLTFCF3KTT |
0.53 |
5 |
1 |
China factory |
FAQ:
1. What kind of finish is available for carbon fiber sheets? Are carbon fiber sheets with a matt finish available?
At this moment only carbon fiber sheets with a gloss finish are available. We can supply a matt finish for larger wholesale orders.
2. Do you supply carbon fiber sheets of thickness customized to individual needs? And what accuracy can your company guarantee?
Our standard carbon fiber sheets are manufactured with accuracy up to ~ + 0.2mm, which means that a sheet 1.5mm thick may have a thickness within the range of 1.5-1.7mm. Upon request, we provide cutting of carbon fiber sheets to the required thickness with an accuracy of 0.05mm.
3. Do you supply unidirectional carbon fiber sheets or biaxial and triaxial carbon fiber sheets?
We supply carbon fiber sheets with 2/2 (twill) or 1/1 (plain) weave but upon request, we also supply unidirectional carbon fiber (UD) or biaxial and triaxial carbon fiber sheets.
4. Are carbon fiber sheets of the quasi-isotropic type available?
We supply carbon fiber sheets with layers oriented at 0/90 degrees, but upon request, we also supply carbon fiber sheets with layers oriented at 0/90/-45/+45 degrees namely quasi-isotropic carbon fiber sheets.
5. What is the thermal resistance of carbon fiber sheets?
Carbon fiber sheets offer thermal resistance of up to 70oC. Upon request, we also supply carbon fiber sheets with thermal resistance up to 150oC.
6. How can I cut carbon fiber sheets in my workshop?
The carbon fiber plates we make are easy to process. They do not flatten when milling on a CNC machine, and the edges are sharp and nice. The carbon plates we make can also be easily machined with household tools such as an angle grinder, drill, file, sandpaper, etc.
7. Can carbon fiber sheets be painted?
Actually, any further treatment depends on the intended use. All supplied carbon fiber sheets (and ones made from epoxy resin) offer resistance to UV. However in the case of long duration or repeated exposure to sunshine (UV radiation) it is recommended to apply a layer of clear top coat (e.g. Polyurethane and Acrylic based) on the outer side of the carbon fiber sheet to ensure total protection against UV radiation.
