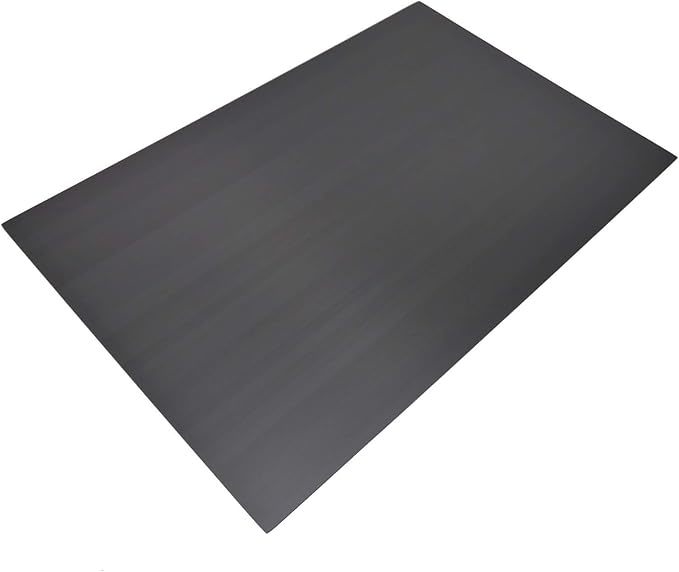

300x200x0.5mm Unidirectional Carbon Fiber Plate Gloss Finish

Product Description

300x200x0.5MM Unidirectional Carbon Fiber Composite Sheet Panel Gloss Finish

A Unidirectional Carbon Fiber Plate is a high-performance composite material engineered with carbon fibers aligned in a single direction (0° axis). This orientation provides maximum strength and stiffness along that fiber direction, making it ideal for structural applications where directional load bearing is critical.

High-hardness pure carbon fiber panels are an excellent solution when strength and weight are the most important factors. These sheets can be used to construct strong structures, create supports, or fabricate your own parts! Each sheet measures just over 300mm x 150mm. Each sheet we sell is guaranteed not to contain any fiberglass and has a very high carbon-fiber content with low resin weight. The surface finish is high gloss and uniform on both sides.

These sheets consist of two layers of carbon fiber oriented horizontally to the longer edge with a gloss finish.

Specifications

• Color: Black
• Size: 300×200×0.5mm
• Composition: Unidirectional carbon fiber 2 layers
• Surface Finish: Unidirectional carbon fiber gloss
• Weight: 50g per sheet

Key Features

• Fiber Orientation: 100% unidirectional carbon fiber layers
• High Strength-to-Weight Ratio: Exceptional strength along the fiber direction, lighter than metal alternatives
• Stiffness: Extremely rigid along the fiber axis, low transverse stiffness
• Appearance: Matte or glossy surface; fibers appear as straight parallel lines
• Thickness Range: Typically from 0.3mm to 10mm or more
• Customization: Can be sanded, cut, or CNC machined

Advantages

• Superior mechanical performance in a specific direction
• Lightweight yet stronger than aluminum or steel (in fiber direction)
• Excellent fatigue and corrosion resistance
• Ideal for multi-layer layups with tailored properties

Carbon Fiber Sheet Plate Specification:
