Aramid honeycomb Core Fiberglass Plate used in municipal engineering

Minimum Order Quantity : 2pcs Price : USD10.36-USD15.54
Packaging Details : Normal logistics packaging Delivery Time : 7 working days after receiving Order Payment
Payment Terms : T/T, PayPal,Western Union , L/C Supply Ability : 1000pcs month
Place of Origin: China Model Number: 1206

Detail Information

Features: The Glass Fiber Origin: Shanghai,China
Company Type: Manufacturer Application: Auto
Resin Type: Epoxy Resin Fabricating: Moulding And Normal Termperature Curring
High Light:

Carbon Fiber Products

,

Carbon Fiber Composite

Product Description

Aramid honeycomb Core Fiberglass Plate used in municipal engineering.





Introduction



Glass honeycomb panel structure design thought source of h beam structure: table plate is equivalent to

the wing plate of h beam, main under normal stress;Middle of cellular layer of h beam web plate, the main

under shear stress.Special-shaped glass fiber honeycomb panel of the structure of the two table plate height is big, have bigger

section moment of inertia, and good stiffness, bending strength;Intermediate sandwich layer bionic natural

honeycomb structure, less materials used, but the shear strength, good stability;Table plate and the

cellular layer optimization combination, the honeycomb panel has the advantages of light weight, good

strength and rigidity.Table plate and cellular choosing appropriate, also can obtain good aseismic, heat

insulation, sound insulation performance, etc.Because the honeycomb panel has light weight, small

radiation pollution, save the stone material, the plate size and other characteristics, can be used in the

ceiling, curtain wall, built in metope, ground, etc., widely used in construction, vehicles, ships and other

decoration.Honeycomb panel usually use 3-5 mm, 10-25 mm honeycomb panel, compounded by special

adhesive bonding.For a curtain wall outside, recommend the thickness of the honeycomb panel for 4-5

mm, bee nest plate thickness not less than 25 mm;For built-in metope, recommend the thickness of the

honeycomb panel for 3-4 mm, honeycomb panel thickness is 15 mm;For built-in condole top, recommend

the thickness of the honeycomb panel for 3-4 mm, honeycomb panel thickness is 15-20 mm;For the

panel, honeycomb panel recommended for 5-8 mm, the thickness of the honeycomb panel thickness for

10 to 15 mm.



Main Performance



high mechanical strength

light weight material

strong corrosion resistance

high dielectric strength



Materials



PP honeycomb panel is made up of two pieces of thin panel, firmly bonded in a thick layer of honeycomb

core material on both sides and made of a sheet, which is also called honeycomb sandwich structure.
Introduction of honeycomb core material is to use the PC (polycarbonate), PP (polypropylene) hives,

aluminum, etc., processed into hexagonal, round the whole piece of core material (cellular) on an empty

stomach.The commonly used panel for PC, PMMA, PETG, aluminum, etc.Panel must adopt suitable

adhesive and the core material firmly together, can show the excellent properties of honeycomb panel,

which is better than strength, low thermal conductivity and good vibration resistance and other functions.

PP honeycomb panel according to the function points: buffer honeycomb panel and honeycomb panel of

packing.Due to its special structure, can improve the compressive strength, PP plastic honeycomb board

to reduce costs.Honeycomb panel aperture generally divided into: (round) 6 mm, 8 mm;12 mm.PP

honeycomb panel can make billboards, condole top, decorating plate, light boxes, etc.Plastic honeycomb

panel is developed countries rise this year to save resources, protect the ecological environment, low cost

of a new type of green decorative material, it has a light, strong, stable, heat preservation, heat insulation,

and many other advantages.Characteristics 1, 2, installation convenient 3 plate flatness high sheet, light

weight, high strength 5, honeycomb core material help space the heat preservation effect of 6, rich color

and surface treatment are available in July and high quality materials and advanced processing

technology, ensure the honeycomb panel durable - in detail -
PP honeycomb products are mainly used in: 1. The building board (2) partition, condole top 3. Furniture

USES sheet 4. Fairing, wind curtain 5. Air filtration and purification, park, garden drainage road, parking

lot, road 6. Display case 7. Van body, car roof and trunk 8. Radome.



Display

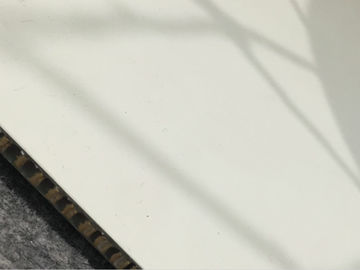

Aramid honeycomb Core Fiberglass Plate used in municipal engineering 0



Aramid honeycomb Core Fiberglass Plate used in municipal engineering 1
