High strength winding process Filament Wound Carbon Fiber Tube Size Customized

China High strength winding process Filament Wound Carbon Fiber Tube Size Customized supplier
High strength winding process Filament Wound Carbon Fiber Tube Size Customized supplier High strength winding process Filament Wound Carbon Fiber Tube Size Customized supplier High strength winding process Filament Wound Carbon Fiber Tube Size Customized supplier High strength winding process Filament Wound Carbon Fiber Tube Size Customized supplier

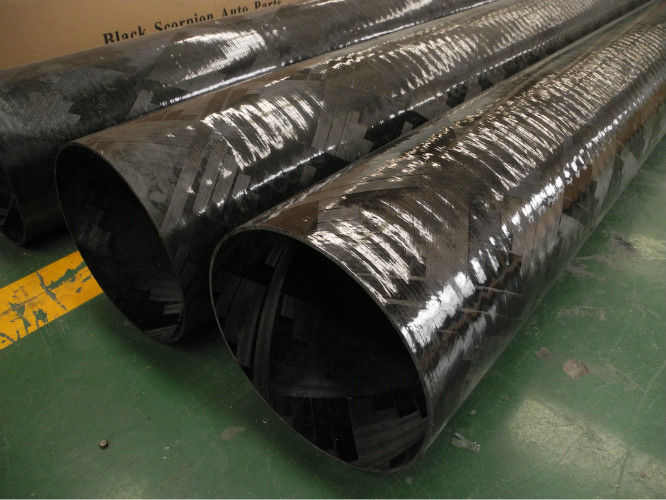

Large Image :  High strength winding process Filament Wound Carbon Fiber Tube Size Customized

Product Details:

Place of Origin: China
Model Number: 0407

Payment & Shipping Terms:

Minimum Order Quantity: 20-50pcs
Price: USD125-USD187.5
Packaging Details: Normal Corrugated Carton Packing for International Shipment
Delivery Time: 7 working days after receiving Order Payment
Payment Terms: T/T, PayPal,Western Union , L/C
Supply Ability: 1500pcs month
Contact Now
Detailed Product Description
The Compressive Strength: To Mechanical Test Standard Application: Auto Driving Shaft
Color: According To The Customer Request Maximum Wall Thickness: 50mm
Thickness Tolerance: ±0.5mm Specifications: According To The Customer Request

High strength and winding process on the surface of black carbon fiber tube, price concessions, quality assured.





Product features

Ø good electrical conductivity.

Ø has excellent corrosion resistance and impact resistance performance.

Surface coating: no (according to requirements)
Surface effect: one-way smooth surface
Supply forms: build
Supply capacity: according to the mould number
Reasonable cooperation advantages: department team support!

Step 3, 9 qc inspection.
►  quality guarantee authentic raw materials
►  fixed-point logistics guarantee



Specification



Function

Sports, unmanned aerial vehicles (uavs)

Not easy to aging

Not easy to aging

Post processing

Drill, such as processing





Carbon fiber winding of molding process

The wet winding Wet winding is fiber cluster (yarn belt), glue, directly under tension control winding onto

The mandrel.The advantages of wet winding for:

(1) 40% lower cost than dry winding;

(2) The product has good air tightness, because of the winding tension to squeeze bubbles, the excess

      resin adhesive liquid and fill gaps;

(3) Fiber arrangement good parallelism;

(4) The wet winding, fiber resin adhesive solution, can reduce the fiber abrasion



 High efficiency (up to 200 m/min).Wet winding faults as follows:

(1) Resin waste is big, poor operating environment;

(2) Gel content and quality of the finished product is not easy to control;

(3) Less available for wet winding resin varieties.



The advantages of the fiber winding



 (1) Can be according to the stress of the product design winding, can give full play to the strength of the

       fiber;

(2) Than high strength: generally speaking, a filament wound pressure vessels with volume,

      compared with pressure of steel container, the weight can reduce 40 ~ 60%;

(3) High reliability: filament

     winding is easy to realize mechanization and automation of production, process condition is

     determined

     put out the product quality is stable and accurate

(4) High efficiency: the mechanized or automated production, need operation workers less, winding

     speed (240 m/min), therefore, high labor productivity.



Display



High strength winding process Filament Wound Carbon Fiber Tube Size Customized



High strength winding process Filament Wound Carbon Fiber Tube Size Customized
