Twill Matte Carbon fiber Plate 1.5mm Carbon Fiber Panels Black Custom

China Twill Matte Carbon fiber Plate 1.5mm Carbon Fiber Panels Black Custom supplier
Twill Matte Carbon fiber Plate 1.5mm Carbon Fiber Panels Black Custom supplier Twill Matte Carbon fiber Plate 1.5mm Carbon Fiber Panels Black Custom supplier Twill Matte Carbon fiber Plate 1.5mm Carbon Fiber Panels Black Custom supplier Twill Matte Carbon fiber Plate 1.5mm Carbon Fiber Panels Black Custom supplier

Large Image :  Twill Matte Carbon fiber Plate 1.5mm Carbon Fiber Panels Black Custom

Product Details:

Place of Origin: China
Model Number: TM_400mm_500mm_1.5mm

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: USD 59.9-USD89.85
Packaging Details: Normal Corrugated Carton Packing for International Shipment
Delivery Time: 7 working days after receiving Order Payment
Payment Terms: T/T, PayPal,Western Union , L/C
Supply Ability: 1500pcs month
Contact Now
Detailed Product Description
Product Name: Carbon Fiber Plate Size Of Tube: 400mm * 500mm * 1.5mm
Weave: Twill Length: 400mm * 500mm
The Thickness Of The: 1.5mm Finish: Matte

Twill Matte Carbon fiber Plate 1.5mm and use for UVA (Unmanned aerial vehicle).





Introduction



Carbon Fiber Plate offered by Lijin Carbon is thermoset at temperature of 125 Celsius degree.Twill Weave,

3K, Matte finish is the most frequently ordered weave and finish style. Lijin Carbon offers Full Carbon Fiber

Plate standard size in 400mm width 500mm length, 1.0mm thickness. The material is Full Carbon Fiber,

which is Carbon Fiber Twill Weave, Matte finish on the surface double side, Unidirectional carbon fiber

prepreg internal. This standard plate prpreg layup is 0/90 intersection.

Stock Availability: Always in stock for MOQ, Qty 100Pcs+ need to be arranged for production

Other size options: instead of 400mm width ×500mm length, larger size 500mm width×600mm length is also

available. The largest size Lijin Carbon can offer is 600mm width×1000mm length, but this has to be

specially arranged.

Tolerance: Thickness ±0.10mm, Width and Length +0.0/-1.0mm

N.W. : 485g/pc *** average weight

Effected from Aug 2015, Lijin Carbon offers carbon fiber plates of standard sizes for immediate delivery, no

matter MOQ two pcs or 50pcs per size plus.

The shipment can be made from our warehouse within 3-5 days after order confirmation.



Specification



wide

length mm

net weight     kg

color

Tolerance

400

500

0.485

Twill Matte

±0.1mm



 Applications  field



Bending, shear reinforcement concrete beams, concrete floor, bridge plate reinforcement reinforcement,

concrete, brick masonry wall, scissors wall reinforcement, bridge pier, pile, such as column reinforcement reinforcement, chimney, tunnels, pool, reinforce the reinforcement concrete pipe, etc



FAQ



Q:  How to order products?



A: You can use SKYPE, Facebook, email, phone and contact us, we will provide high quality products and

     efficient service.

Q: How to pay?

A: You can through the Western Union, L/C, T/T, PayPal



Our Services



Lijin Carbon offers business level products and service. We manage the production and customization is

what we always can do. For certain applications, the Full Carbon Fiber option might not always be the

best option, carbon fiber and Fiberglass composite plates might even work better. We can do this if you

want to know more about material customization.



Display

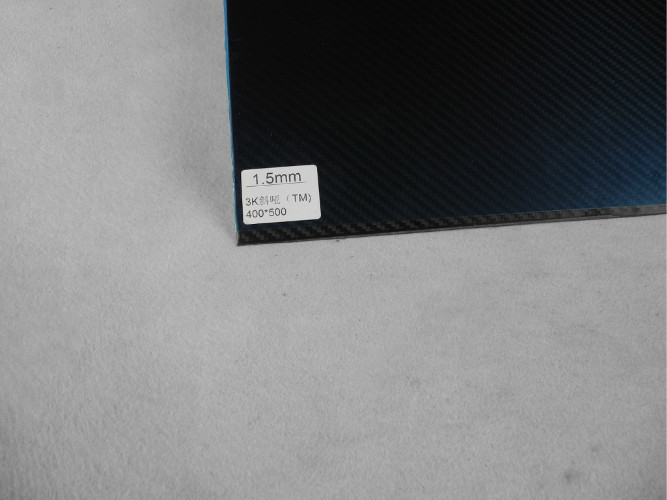

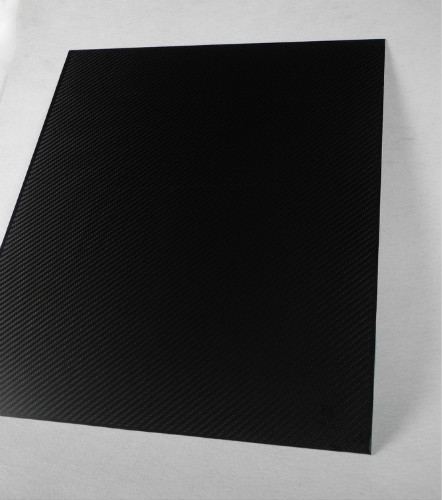

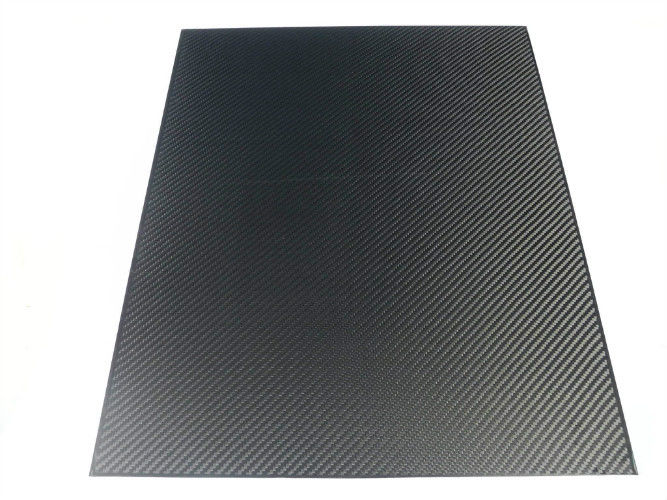

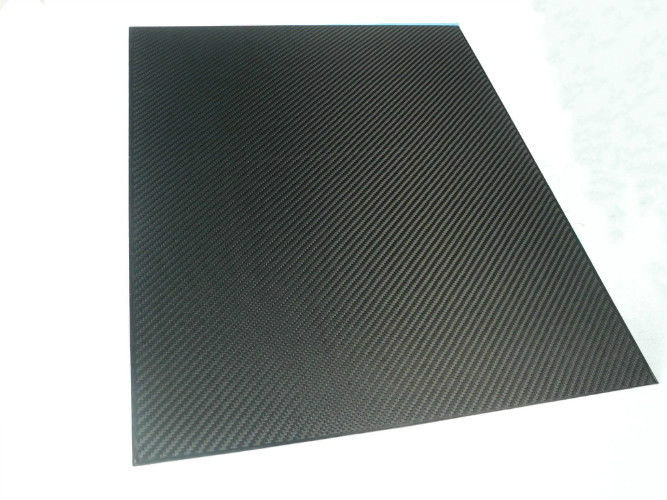

Twill Matte Carbon fiber Plate 1.5mm Carbon Fiber Panels Black Custom



Twill Matte Carbon fiber Plate 1.5mm Carbon Fiber Panels Black Custom



Twill Matte Carbon fiber Plate 1.5mm Carbon Fiber Panels Black Custom
