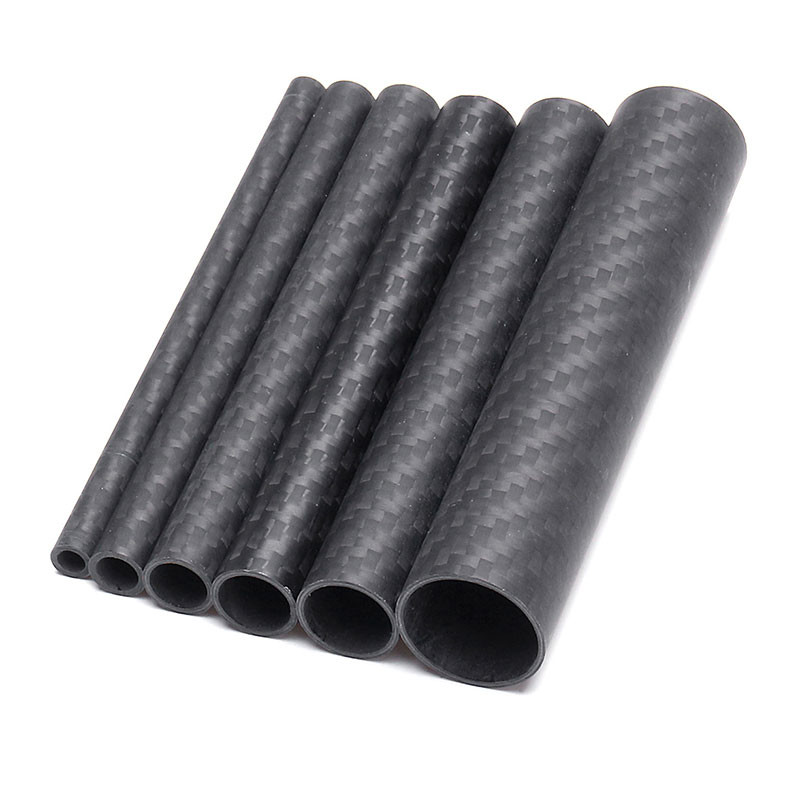

Roll Wrapped Carbon Fiber Tube 3K Twill Plain Glossy Matte

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Features: Lightweight, High Strength Product Name: Carbon Fiber Tube
Material Description: 100% Carbon Fiber Pattern: Twill, Plain
Shape: Round Or Custom Technology: Roll-wrapped
Weaves: 3K Plain / 3K Twill / Unidirection Density: 1.5g/cm^3
Fibre Orientation: 0, 90 Port: Shanghai
High Light:

Glossy Matte Carbon Fiber Round Tube

,

Matte Roll Wrapped Carbon Fiber Tube

,

3K Twill Plain Carbon Fiber Pipe

Product Description

Multi-Size Specifications Twill Plain Glossy Matte Carbon Fiber Tube


Carbon tubes can be used for a variety of applications, for example in frames, and standards, as well as in robotic grippers and precision measurement setups. Our carbon tubes are made of prepreg carbon fibres with epoxy resin and laminated to a dimensionally stable core. With this high-end material, you can achieve the highest specifications and the best quality at a fibre volume content of approximately 65% (= 65% carbon fibre, 35% epoxy).



LIJIN has developed a unique composite tube manufacturing process, combing precise control of the fibre lay-up angles with the enhanced properties of Thin Ply Prepregs. The process is ideal for any tubular structure where weight, performance and cost are critical factors. Automotive drive shafts, aircraft struts, windsurf masts and golf shafts are just a few examples of possible applications.



With any tubular product, or indeed any composite structure, the use of thinner plies offers nearly unlimited options for fibre angles and fibre type combinations; and the micro-structure of a thin ply laminate results in higher mechanical properties. LIJIN’s novel tube manufacturing process ensures that each of these thin carbon plies is wound continuously, resulting in a symmetrically stiff tube with no spine, unlike the traditional table rolling methods that have dominated the market until now. This new process affords precise control over the alignment of perfectly axial fibre, which is difficult to achieve with filament winding. The ratio of longitudinal fibres to off-axis fibres along the length and through the thickness of the tube can be controlled, enabling optimization and higher quality in demanding applications.



This uniformity of wall thickness, control of fibre alignment and use of thin plies results in a tube that matches the design exactly, without compromise. The potential of this innovative manufacturing technology is considerable. LIJIN has focused on the automation of its processes to keep costs low whilst maintaining the quality, which means that re-shoring the production of advanced composite parts in Europe and the US is now a very real option for customers.



Material 3K Carbon Fibre Tube
Shape Round/Oval
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm


Our Service:

1. It ensures that a year of quality assurance and 24 hours online customer service.
2. Protection of your sales area, ideas of design, and all your private information.
3. Request for samples is accepted.
4. Drilling and slotting are accepted.
5. We guarantee the products to be manufactured with the finest materials and mature technics.
All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.
Roll Wrapped Carbon Fiber Tube 3K Twill Plain Glossy Matte 0Roll Wrapped Carbon Fiber Tube 3K Twill Plain Glossy Matte 1Roll Wrapped Carbon Fiber Tube 3K Twill Plain Glossy Matte 2Roll Wrapped Carbon Fiber Tube 3K Twill Plain Glossy Matte 3Roll Wrapped Carbon Fiber Tube 3K Twill Plain Glossy Matte 4
